| Ball 1 Diameter and Capacity |
2 IN - 10,000 LB |
| Ball 2 Diameter and Capacity |
2-5/16 IN - 20,000 LB |
| Ball Diameter |
2 IN or 2-5/16 IN |
| Box Height in Inches - XA |
0 |
| Box Length in Inches - XA |
0 |
| Box Width in Inches - XA |
0 |
| Class ID |
0 |
| Description_ABR |
MOUNT |
| Description_ASC |
2" ball rated for 10,000 lbs. and 2-5/16" ball rated for 20,000 lbs. |
| Description_ASC |

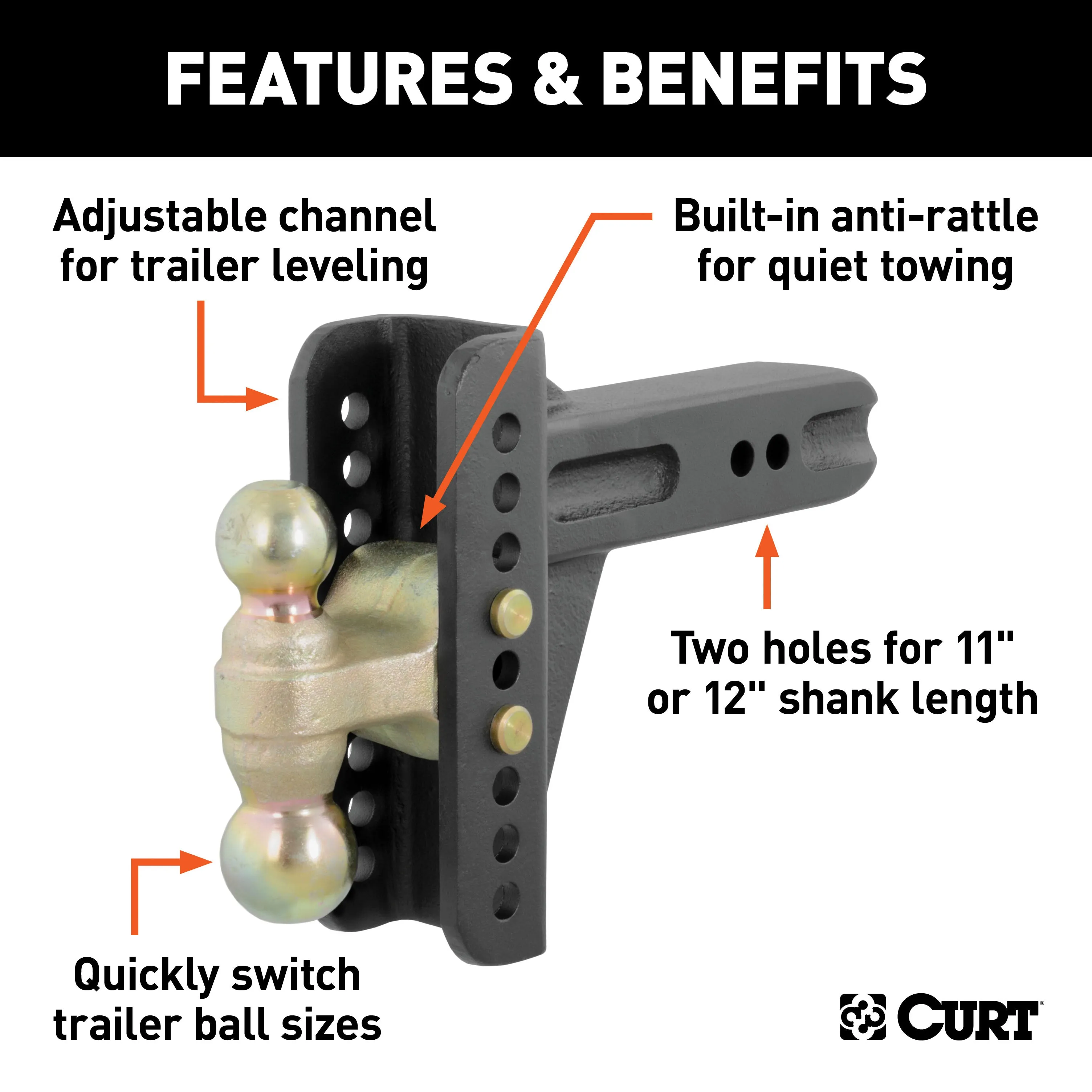

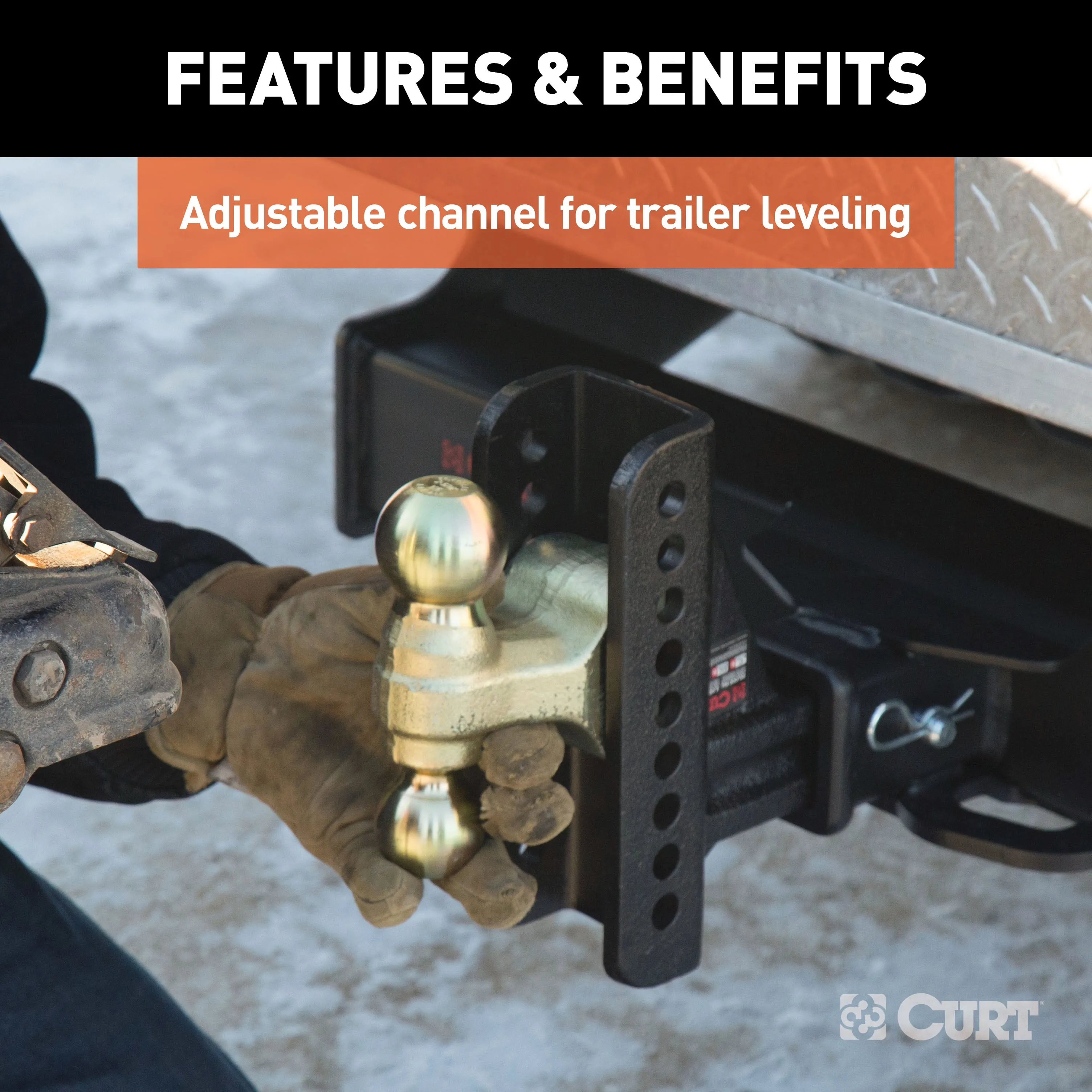

Adjustable channel mount allows for precise trailer leveling |
| Description_ASC |
Adjustable Channel Mount with Dual Ball (2-1/2" Shank, 20,000 lbs., 6" Drop) |
| Description_ASC |

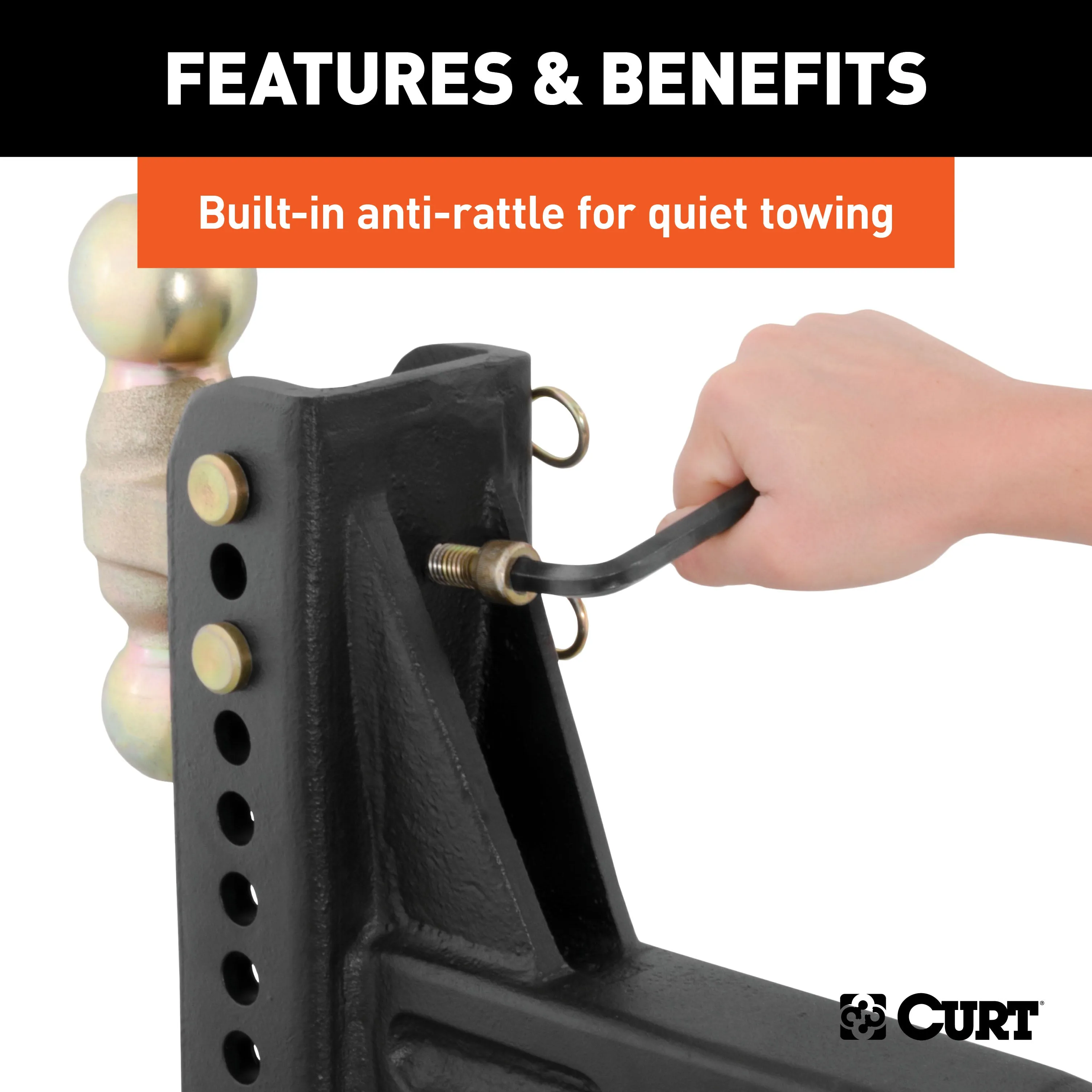

Built-in anti-rattle helps promote quiet towing |
| Description_ASC |
Limited lifetime warranty (one-year finish, one-year parts) |
| Description_ASC |
Mounts on trailer hitches with a 2-1/2" x 2-1/2" receiver tube opening |
| Description_ASC |
Protected by a highly durable carbide powder coat finish |
| Description_ASC |

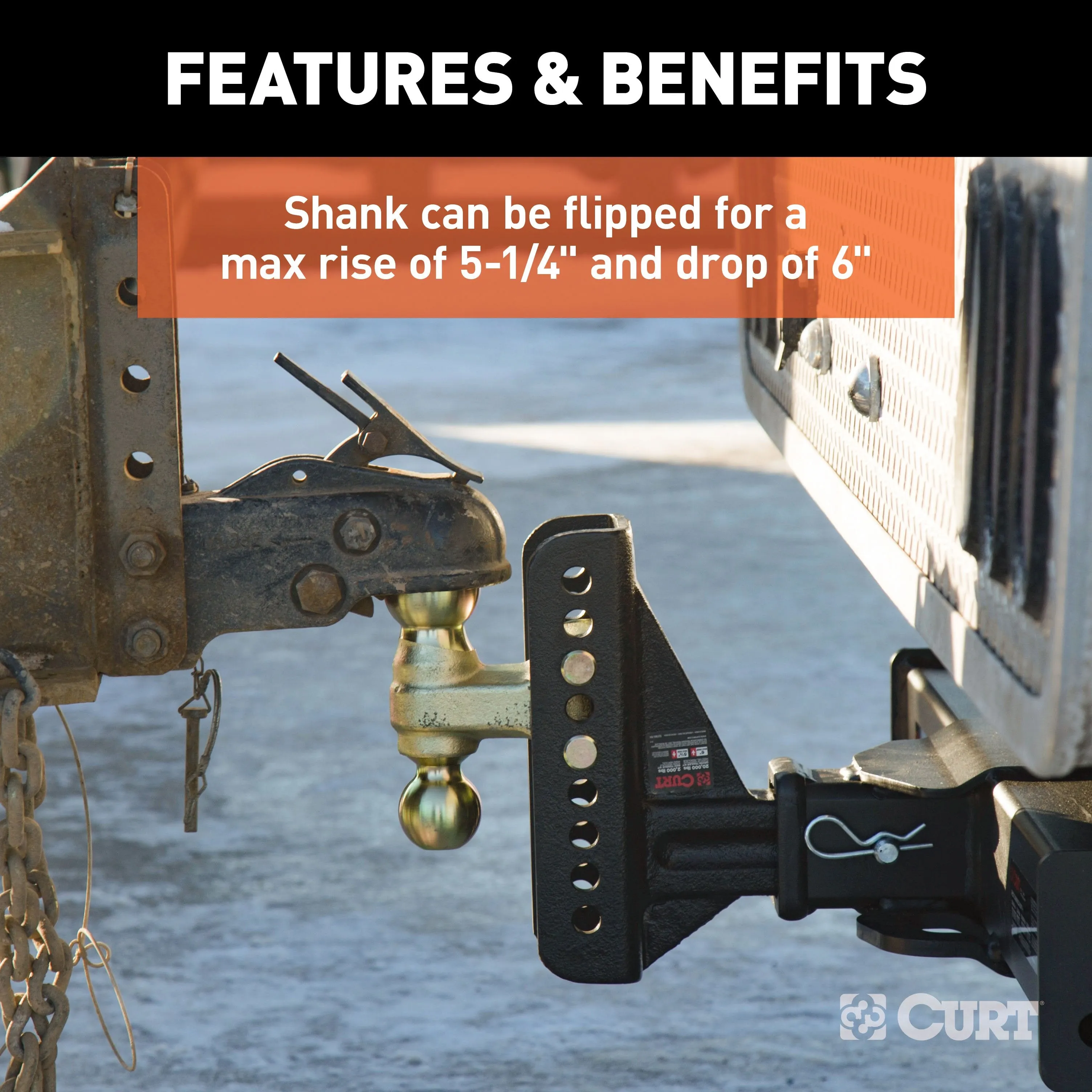

Shank can be flipped for a max rise of 5-1/4" and drop of 6" |
| Description_ASC |
Two hitch pin holes provide shank lengths of 11" or 12" |
| Description_ASM |
CURT 45902 Adjustable Trailer Hitch Ball Mount, 2-1/2-Inch Receiver, 6-Inch Drop, 2 and 2-5/16-Inch Balls, 20,000 lbs |
| Description_DEF |
Trailer Hitch Ball Mount |
| Description_DES |
Adjustable Channel Mount with Dual Ball (2-1/2" Shank, 20,000 lbs., 6" Drop) |
| Description_DES |
Adjustable Channel Mount with Dual Ball (2-1/2in. Shank; 20;000 lbs.; 6in. Drop) |
| Description_EXT |
CURT 45902 Adjustable Trailer Hitch Ball Mount, 2-1/2-Inch Receiver, 6-Inch Drop, 2 and 2-5/16-Inch Balls, 20,000 lbs |
| Description_EXT |
CURT 45902 Adjustable Trailer Hitch Ball Mount; 2-1/2-Inch Receiver; 6-Inch Drop; 2 and 2-5/16-Inch Balls; 20;000 lbs |
| Description_FAB |
Adjustable Channel Mount Allows For Precise Trailer Leveling |
| Description_FAB |
Built-In Anti-Rattle Helps Promote Quiet Towing |
| Description_FAB |
Can Be Flipped For A Max Rise Of 5 1/4 In. And Drop Of 6 In. |
| Description_FAB |
Fits 2 In. And 2 5/16 In. Couplers And Accepts Up To 14000 Lbs. |
| Description_FAB |
Mounts On Trailer Hitches w/A 2 1/2 In. X 2 1/2 In. Receiver |
| Description_FAB |
Patent# Us8033563 |
| Description_FAB |
Protected By A Highly Durable Carbide Powder Coat Finish |
| Description_FAB |
Two Hitch Pin Holes Provide Shank Lengths Of 11 In. Or 12 In. |
| Description_INV |
Adjustable Channel Mount |
| Description_KEY |
truck trucks down balls heavy duty safe raiser high low adapter 3 lift lifted adjust adjustible pickup haul 2-ball adjustabel iii 2" asjustable riser universal 2inch interchangeable v kit hitchs 2in drawbar position adjusable insert multi height double |
| Description_MKT |
If you own multiple trailers or frequently tow a variety of loads, you know how much time and money are spent tailoring your towing system to each and every individual trailer. There is nothing more inconvenient than switching back and forth between a few different ball mounts and trying to remember which mount fits with which trailer. A CURT adjustable ball mount is your multipurpose towing solution. This CURT adjustable channel-style ball mount has a shank size of 2-1/2" x 2-1/2" and features two different trailer ball sizes to accommodate two different coupler sizes: 2" and 2-5/16". It also features an adjustable shank assembly with multiple mounting holes for varying ball heights. Each trailer ball can be raised to a maximum of 5-1/4" rise or lowered to a maximum of 6" drop, allowing you to make your trailer completely level in any towing situation. The channel-style design and dual-pin mounting system also provide a built-in anti-rattle feature to eliminate obnoxious chucking noises. This CURT adjustable ball mount offers a gross trailer weight capacity of up to 10,000 lbs. for the 2" ball and 20,000 lbs. for the 2-5/16" ball. It allows you to tow a variety of heavyweight trailers, and it features two pin holes in the shank to be mounted at an 11" or 12" length. The adjustable channel-style shank can also be used with the channel-style combination pintle mount or ball mount platform attachment to give you the option of installing your own trailer ball size. All CURT channel-style adjustable ball mounts are made with sturdy steel construction and come with our black carbide powder coat finish for long-lasting rust, scratch and UV resistance. |
| Description_SHO |
Adjustable Channel M |
| Description_SHO |
Channel Mount |
| Description_SLA |
If you own multiple trailers or frequently tow a variety of loads, you know how much time and money are spent tailoring your towing system to each and every individual trailer. There is nothing more inconvenient than switching back and forth between a few different ball mounts and trying to remember which mount fits with which trailer. A CURT adjustable ball mount is your multipurpose towing solution. This CURT adjustable channel-style ball mount has a shank size of 2-1/2" x 2-1/2" and features two different trailer ball sizes to accommodate two different coupler sizes: 2" and 2-5/16". It also features an adjustable shank assembly with multiple mounting holes for varying ball heights. Each trailer ball can be raised to a maximum of 5-1/4" rise or lowered to a maximum of 6" drop, allowing you to make your trailer completely level in any towing situation. The channel-style design and dual-pin mounting system also provide a built-in anti-rattle feature to eliminate obnoxious chucking noises. This CURT adjustable ball mount offers a gross trailer weight capacity of up to 10,000 lbs. for the 2" ball and 20,000 lbs. for the 2-5/16" ball. It allows you to tow a variety of heavyweight trailers, and it features two pin holes in the shank to be mounted at an 11" or 12" length. The adjustable channel-style shank can also be used with the channel-style combination pintle mount or ball mount platform attachment to give you the option of installing your own trailer ball size. All CURT channel-style adjustable ball mounts are made with sturdy steel construction and come with our black carbide powder coat finish for long-lasting rust, scratch and UV resistance. |
| Drop |
No Drop |
| finish |
Carbide Black Powder Coat |
| Finish - XA |
CARBIDE BLACK POWDER COAT |
| Gross Trailer Weight (GTW) |

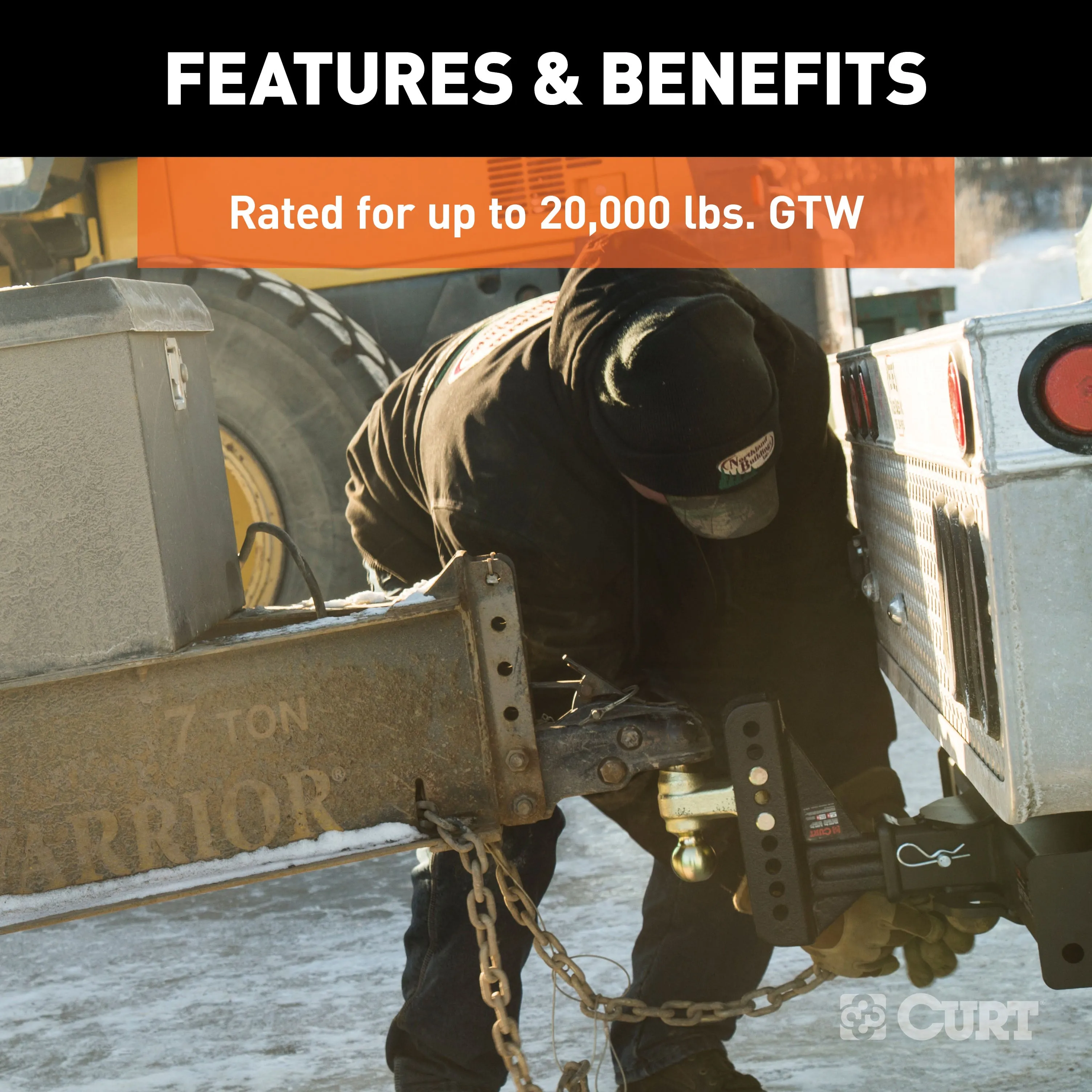

20,000 LB |
| height |
5.0 |
| Item Class - XA |
OBS |
| Item Height - XA |
0.000 |
| Item Length - XA |
0.000 |
| Item Width - XA |
0.000 |
| length |
13.5 |
| LTL |
N |
| Max Drop |
6 IN |
| Max Rise |
5-1/4 IN |
| Overall Length |
N/A |
| Parcel Allowed - XA |
Yes |
| Product Weight - XA |
0.000 |
| Rate Class - XA |
70.0 |
| Receiver Tube Size |
2-1/2 IN |
| Retail Height - XA |
5.000 |
| Retail Length - XA |
13.500 |
| Retail Width - XA |
11.500 |
| Rise |
No Rise |
| Shank Length |
11 IN or 12 IN |
| Shipping Weight - XA |
38.000 |
| Style |
Adjustable |
| Tariff 301 - XA |
No |
| Title |
Adjustable Channel Mount with Dual Ball (2-1/2" Shank, 20,000 lbs., 6" Drop) |
| WARNING CA Proposition 65 |
No |
| Warranty |
Limited Lifetime Warranty (One-Year Finish, One-Year Parts) |
| weight |
38.0 |
| width |
11.5 |
