DESCRIPTION
KORLOY Part Number: 1-06-016795

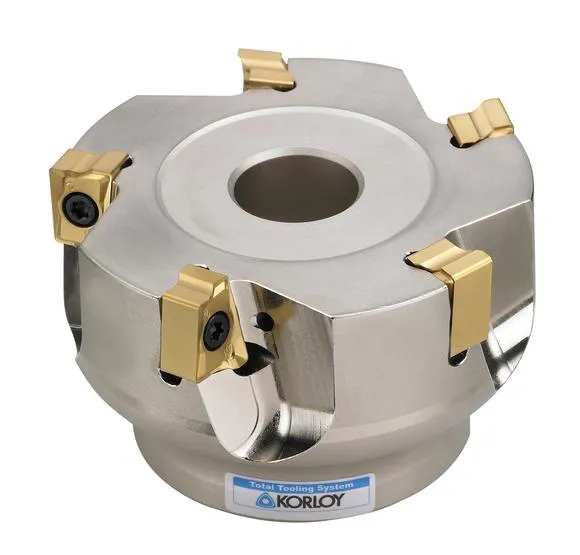

Korloy's Rich Mill RM4 is a multi-functional milling tool that offers economical 4 cutting-edges by using an innovative double-sided inserts. Perfect for facing, side milling, shouldering, slotting, ramping and helical cutting. The high rake angle and strong cutting-edge decreases cutting load. This tool has a integrated shank.
- Improved chip control with wide chip pockets
- High rake chip breaker creates low cutting load to improve machineability
- Multi tool for facing, shouldering, slotting, ramping and helical cutting
- Through Coolant for direct cooling
***Product image may be different than actual product.
SPECIFICATIONS
| Brand: | KORLOY |
| Korloy Cutter Series: | Rich Mill RM4 |
| Type: | 90 Deg. Multi-Application Indexable Mills |
| Designation: | RM4PSA3075HR-S075M |
| Approach Angle: | 0 |
| Diameter: | 0.75 |
| Overall Height: | 1.181 |
| Arbor Hole Diameter: | 0.75 |
| Number Of Inserts: | 3 |
| Insert Mounting Style: | Screw-On |
| Inscribed Circle Of Insert: | 3/8 |
| Thru Coolant: | Yes |
| Cutting Hand: | RH |
| Pitch Type: | Close |
| AR: | -6 |
| RR: | -39 |
| Accepts Insert: | LNEX | LNMX |
| Tool Type: | Integrated Shank |
| Screw #: | FTKA0307 |
| Replacement Wrench: | TW09S |
| Used For:: | Facing|Side Milling|Slotting|Ramping|Helical Cutting |
| Prop 65: | Yes |
| Country Of Origin: | IMPORT |
| Weight: | 0.5 lbs. |
